Bedpan washing equipment

Hungary has nearly 200 pieces of equipment we sell, service, which has been since Wizards of our company as the service is carried out by medical technology.

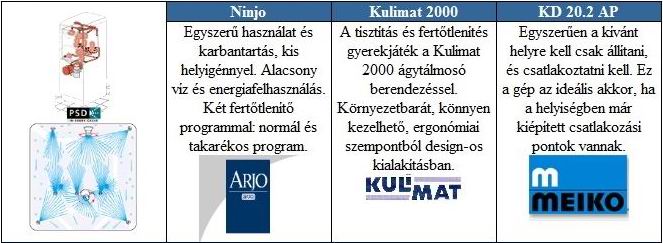

The equipment, we have grouped the three large groups, on the basis of the companies we represent, which only serve as illustration. Our product range include, in-wall, toilet and nozzle combination, other special equipment needs. The bedpan washers can be ordered with a duck and a bedpan shelves in different sizes and designs.

A small technical review. Bedpan washing equipment.

Dimensions

Width

450 mm

450 mm

500 mm

Depth

580 mm

470 mm

450 mm

Height

1250 mm

1850 mm

1610 mm

Water Connection

Cold Water

15 mm

(3/4") 20 mm

15 mm

Hot water 45-60oC

15 mm

(3/4") 20 mm

15 mm

Pressure

0,7-8 bar

0,7-8 bar

>1 bar

Flow Controls

>0,3 l/s

20 l/s

18 l/s

Drain

External 100 mm Ø ,            Inner 100 mm Ø

100 mm Ø

100 mm Ø

Use Of Water

Short program

12 l/ciklus

6 l/ciklus

9 l/ciklus

Normal program

20 l/ciklus

15 l/ciklus

18 l/ciklus

Intensiv program

-

27 l/ciklus

24 l/ciklus

Electrical connection

Electric 3-phase

400 V, 50 Hz, 3x10 A,         3,5 kW

400 V, 50 Hz, 4,2 kW

Electric 1 phase

230 V, 50 Hz, 1x16 A, 3 kW

230 V, 50 Hz, 1x16 A, 3 kW

230 V, 50 Hz, 3,0 kW

Energy Use

0,16 kWh/ciklus

0,16 kWh/ciklus

Energy Use

Noise Level

58 dB (A)

48-56 dB (A)

56 dB

Weight

68 kg

90 kg

So that we can provide you with the best plan, the following terms and conditions of payment we've developed:

  • Maintenance contract

  • A flat-rate contract

  • Bedpan washing rental

  • Installment payment

  • Payment facilitation

  • A unique on-demand payment terms
